Dual capacity with advanced controls. Consistent comfort.

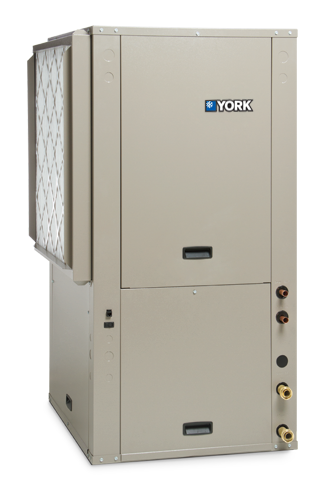

The York® Affinity™ Y5A provides advanced controls allowing the you to monitor the system's energy consumption. The Y5A is available in a number of sizes and configurations so it’s the perfect fit for any application.
Efficiency
Geothermal heat pumps are much more efficient than traditional heating and cooling systems. The York® Affinity™ Y5A is rated with an amazing 30 EER and 5.0 COP, which makes it one of the most efficient dual stage units on the market. Efficiency translates into savings.
All-in-One
One York® geothermal heat pump will provide heating, cooling, and supplemental hot water for your home. A variety of sizes and configurations are available, so no matter your home or climate, a geothermal heat pump will work for you.
Cost effective
Geothermal heat pumps are so efficient that any added cost over traditional equipment is usually recovered in just a few years. And because they have a lifespan of 20-25 years, your investment will last longer and your return on investment will grow year by year.
Environmentally responsible
Since our units don’t burn expensive, polluting fossil fuels, they’re the most environmentally responsible options available today. Replacing a furnace and/or air conditioner with geothermal can minimize acid rain threats, air pollution, and the greenhouse effect.
Safe
No combustion or flames are used to operate a geothermal heat pump, making it a safe choice for your home and family. Our systems merely move heat to and from the ground rather than by burning natural gas, propane, or oil.
Affordable peace of mind
York® Affinity™ Y5A units come with warranties up to 10 years for parts and labor allowances. Other options are available, so see your York® Contractor for details.
Dual capacity compressor
Allows the unit to operate at two speeds rather than running at one high speed all the time. The Affinity™Y5A can operate more frequently in a lower speed to satisfy the needs of your home while saving energy.
Controls
Sophisticated Aurora controls provide easy-to-use but extensive troubleshooting capabilities as well as advanced two-way communication between components. Expanded capabilities include true energy monitoring, extended hot water generation, and more.
Blower motor
An ECM variable speed blower motor operates at only the speed needed for the greatest in efficiency, comfort, and savings.
Aurora Interface Diagnostic port
Technicians can diagnose and service your system without even opening the unit by utilizing the external communication port and interface tool.
IntelliStart
Lengthen the lifetime of your system and compressor with the optional IntelliStart soft starter. This accessory decreases start-up amperage by up to 70% and reduces light flicker.
Coated Coaxial Heat Exchanger
Coaxial heat exchanger life is extended by our proprietary coating that protects against condensation at temperatures below 50°F.
Advanced Hot Water Generation
The optional hot water assist option preheats water and delivers it to your water heater or buffer tank. The system monitors heat pump conditions to optimize hot water generation.
All Aluminum Air Coil
Aluminum air coils are standard in the Y5A providing durability and extended system life.
Cabinet
A professional grade powder-coat finish provides long-lasting beauty and protection. The unit is fully insulated with cleanable foil-backed insulation that ensures quiet operation.
Filter and Filter Rack
A high performance MERV 11 pleated filter comes standard while an optional MERV 13 pleated filter is available. The filter rack can be easily converted for use with 1” or 2” filters.
R-454B
Y5A models utilize our most eco-friendly R-454B refrigerant.
Compressor
Dual Capacity Compressor
Coil
All-Aluminum
Fan Motor
ECM Blower Motor
Controls
Aurora Controls
Hot Water Generation
Optional - Internal mount pump
Refrigerant
R-454B
Filter
MERV 11 filter
Warranty
Up to 10-Year Parts and Labor Allowance
Capacity
2-6 ton
Efficiency Rating
30 EER / 5.0 COP
Energy Star
All Models
